ERW MILLS
Carbon Steel

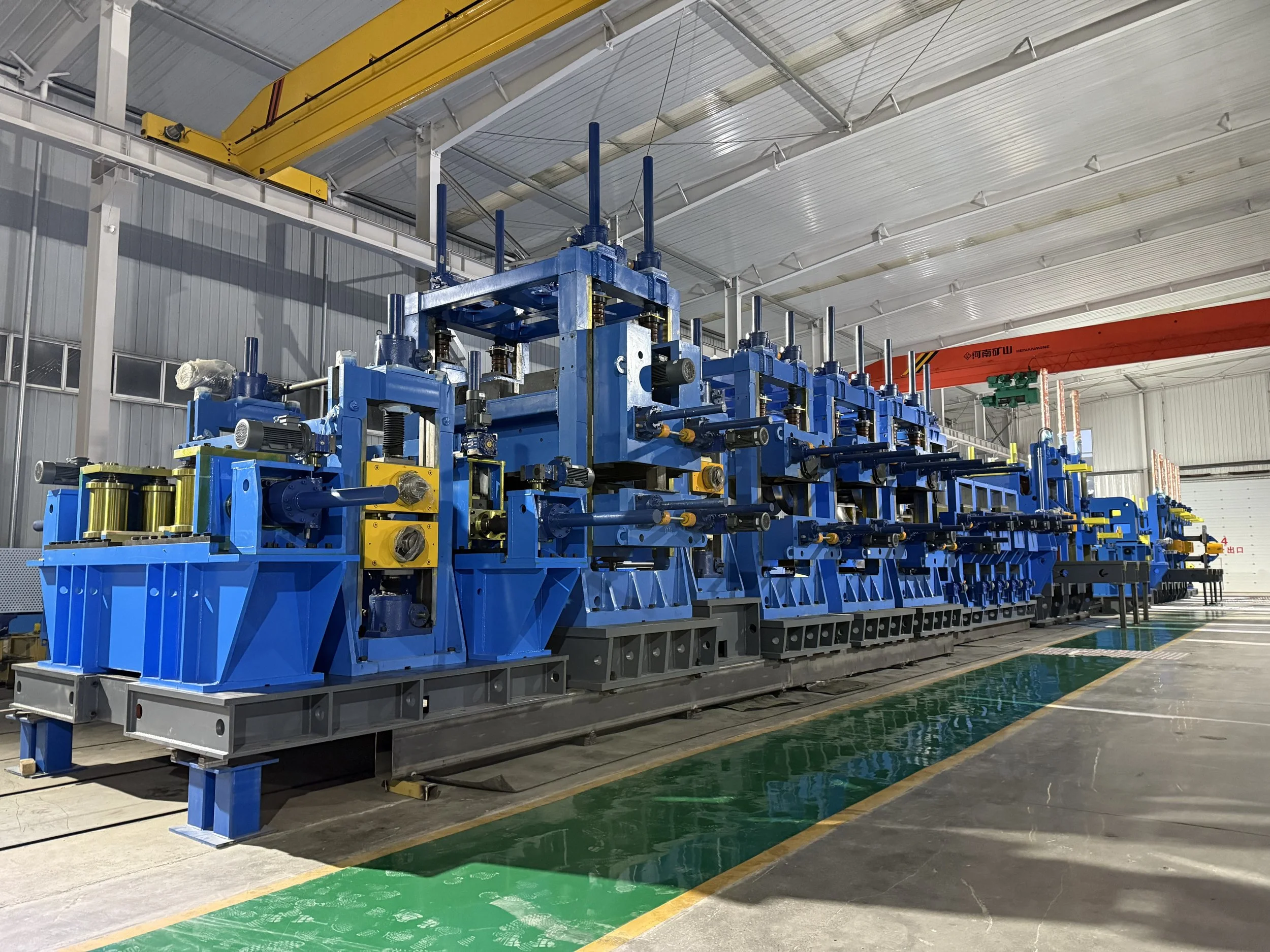

ERW API Pipe Plants up to 26”
These pipes are widely employed across various sectors, including water supply, oil and gas, and construction, owing to their reliability, strength, and precision manufacturing.
Versatile API Pipe Mills with automated roll setting in forming; no roll change needed in BD section for the full range of tubes.
| Diameter | Thickness | Length | Material |
|---|---|---|---|
| 168mm - 508mm (6" - 20") | 16mm / 19mm / 22mm | Up to 24 meters | Up to X-80 |
| 219mm - 630mm (8" - 25") | 16mm / 19mm / 22mm | Up to 24 meters | Up to X-80 |
| 244mm - 660mm (9" - 26") | 16mm / 19mm / 22mm | Up to 24 meters | Up to X-80 |
| 76mm - 219mm (3" - 8") | 12.7mm | Up to 24 meters | Up to X-80 |

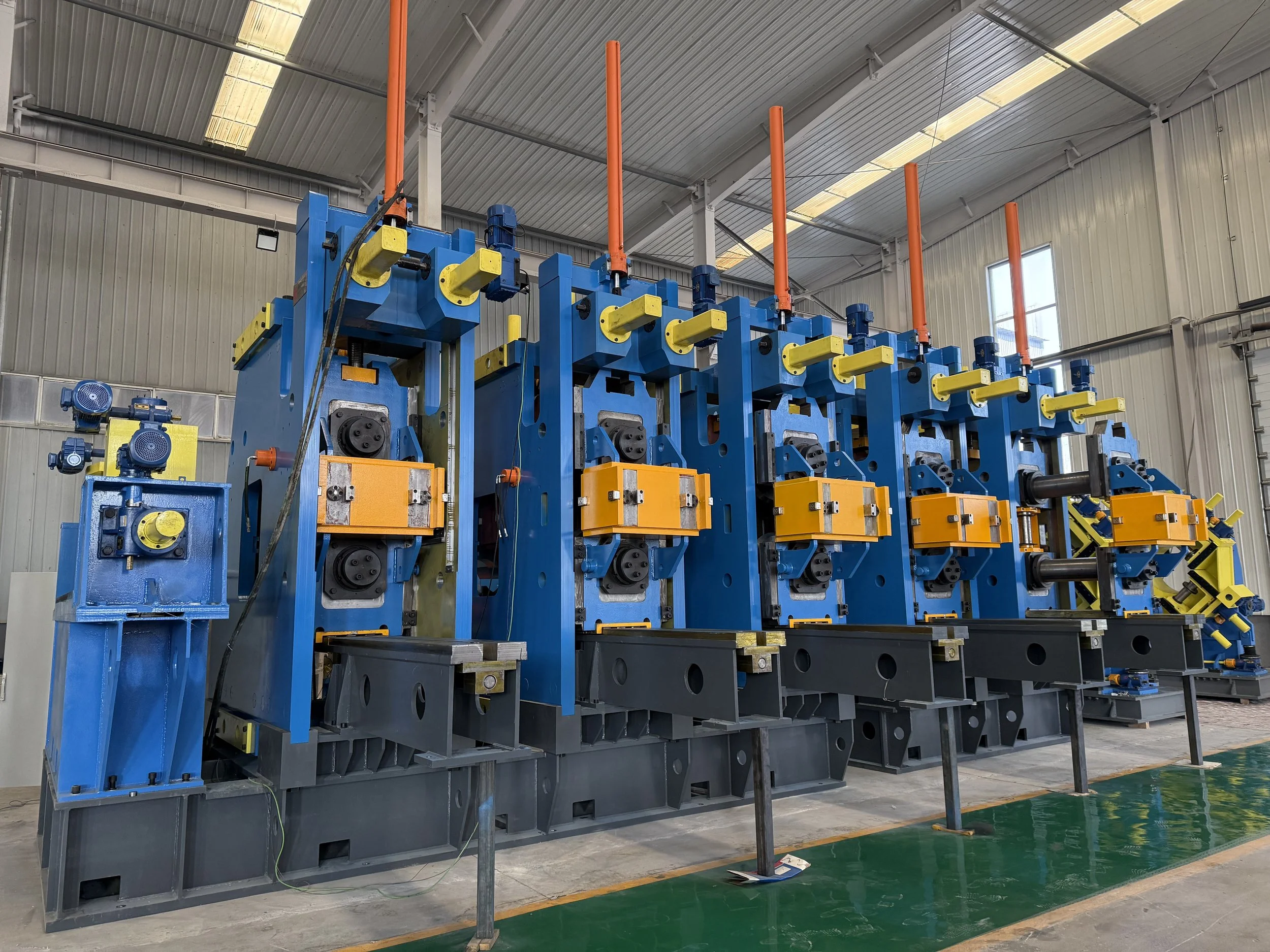

Direct Forming Tube Mills
No roll change required for any tube size within the Mill range
One universal set of rolls covers the entire size range
Extremely fast changeover times with automatic roll adjustment
Supports efficient just-in-time manufacturing
Specially designed for square and rectangular tube production only
Finishing Lines
Harve Ace offers a comprehensive range of Finishing and Pre-Line Equipment, including:
Material handling equipment like Pipe Indexers, Conveyors, Skids, Pipe ejectors and receivers
Hydrotester
Endfacer
Offline UT Testing Station
X-Ray Testing Station
Pipe Marking
Pipe Inside Cleaning
Tab plate welding station
Tab plate removal station
